WPC Wood Plastic Pelletizing Line includes mixing, transporting, feeding, extrusion granulation, eagerly cooling loop cooling breeze in one automated continuous operation, effective rate, using the inverter to control the speed of granulated material to meet the requirements of the shift and save power function.It is compact, occupies less space and can be surface mounted.
Modular screw and barrel,it has the advantage of wider application. By changing a small barrel and screw element, screw and barrel can handle different types of materials.
WPC Wood Plastic Pelletizing Line Features:
1.Accurate and convenient control system: Optional separate control unit, analog-screen display, PLC system, PEC system control.
2.Low vibration, low noise. The unit can be easily installed on flat ground.
3.Production process segment loop temperature control, kneading machine, feed extruder, etc. have their own heating and cooling system, according to process requirements to control their temperature.
4.Feeder uses double propeller extrusion feeding,good feeding ability. Especially suitable for directly through the mixer mixing the dough material extrusion granulation.
WPC Wood Plastic Pelletizing Line Technical Data:
Item | Screw diameter(mm) | L/D | Rotating speed(rpm) | Power (KW) | Capacity (kg/h) |
SHJ-36 | 36 | 32-48 | 600 | 15-18.5KW | 50-100kg/h |
SHJ-52 | 52 | 32-48 | 500 | 37-45KW | 100-200kg/h |
SHJ-65 | 65 | 32-48 | 400/500 | 55-75KW | 250-350kg/h |
SHJ-75 | 75 | 32-48 | 400/500 | 75-110KW | 350-500kg/h |
SHJ-95 | 95 | 32-48 | 300 | 132-250KW | 500-800kg/h |

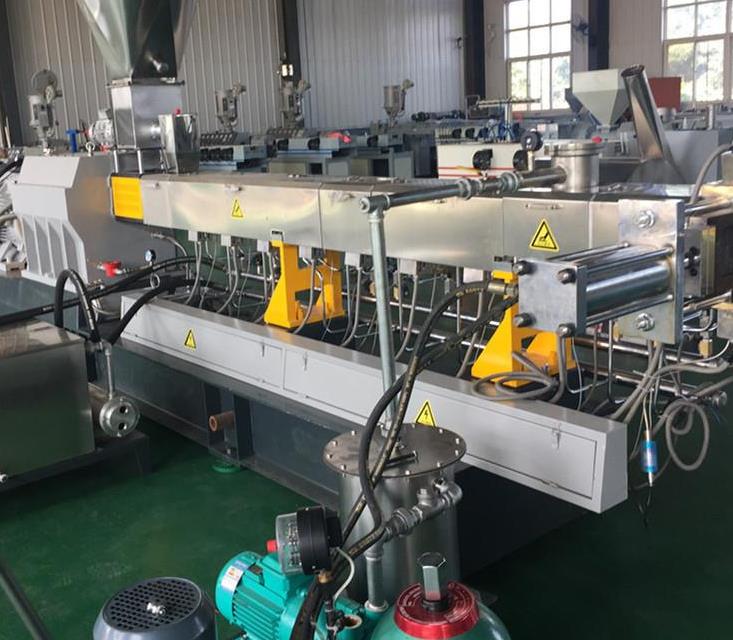

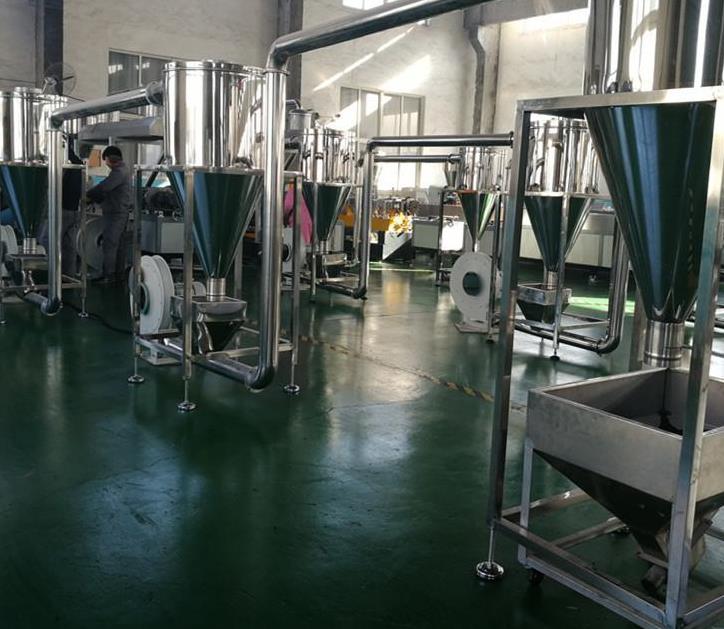

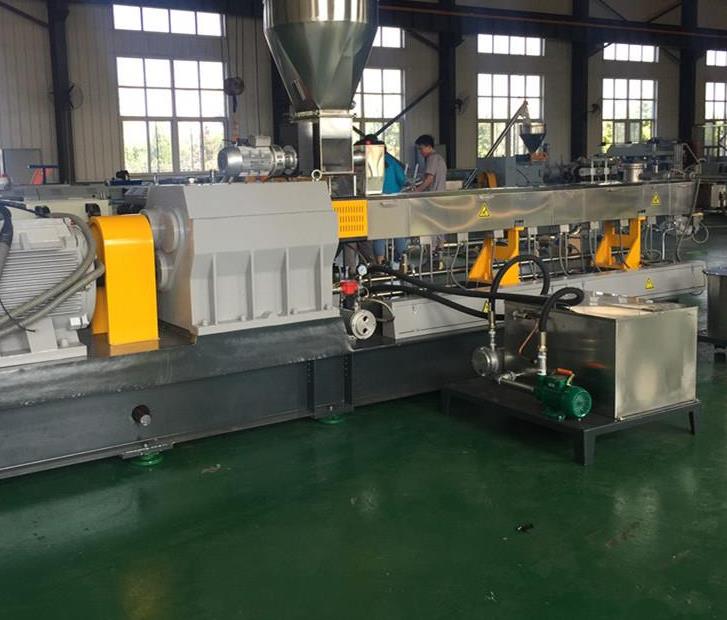

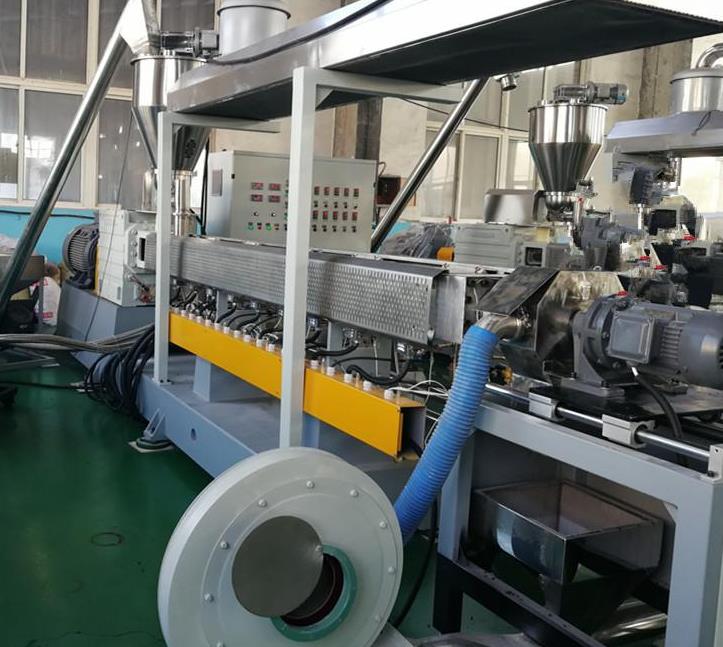

WPC Wood Plastic Pelletizing Line Pictures:
