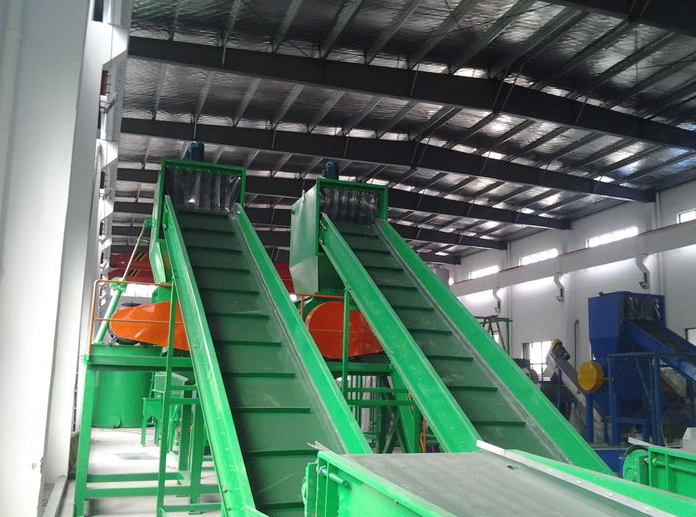

PET Waste Bottle Recycling And Washing Line
• This recycling/washing line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET
sheet and PET packing containers.

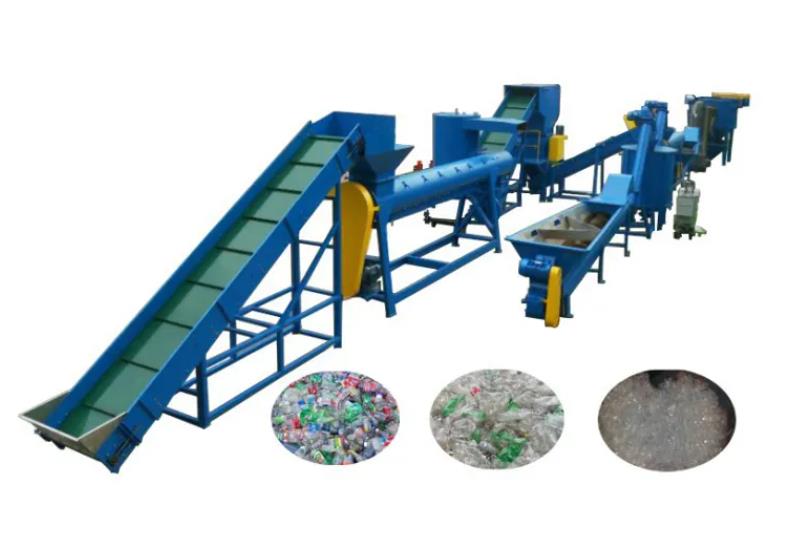

• The whole line includes: conveyor belt, label remover(dry type or water type), sorting system,metal detecting system, plastic granulator or crusher, sink-float washing tank, hot washing system, frication washer, dewatering machine, thermal dryer, label/dust/fin separator and packing system.
• The above machines can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.
• All your requirements of the washing line will be customized.
PET Waste Bottle Recycling And Washing Line Flowchart:
Conveyor belt →Label remover machine → Sorting table→Conveyor belt → Crusher → Screw loader→ Float washing tank→ Friction washing machine → Screw loader→Hot washer tank → High-speed friction washing machine → Floating washing tank → Dewatering machine → hot air dryer system → zig zag air classifier system → Silo
PET Waste Bottle Recycling And Washing Line Features:
• Labor saving. The bale opening and feeding system we provide will equally feed the material.
• You can use the manually sorting system to selecting out different color bottles and non-PET material
• Metal detector is optional for you which used to take out any kind of metal from the PET bottles
• Specially designed PET bottle granulator can easily get high output and with water doing wet griding can
reduce wear of blades.
• High speed dewatering machine and drying system will insure the final PET flakes moisture <1%
• The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content
PET Waste Bottle Recycling And Washing Line Application:
• The PET Bottle Washing Machine is specially designed to produce fiber use PET flakes.
• The flakes can be used for the 2-D, 3-D PSF, filament yarn, PET strap, PET sheet or PET film.
• The PET Bottle Washing Machine can adopt the PLC automatic control of the full line to control the final products quality and save energy.
• It can be equipped with the Europe automatic material sorting system and color sorting system.
• It can be customized according to the raw material and customer requirement.
PET Waste Bottle Recycling And Washing Line Technical Data:
Capacity | Installed power | Water supply | Manpower(Persons) | Area required |
500kg/h | 130+60 KW | 2-3m3/h | 6-7 | 55*5*3.5(L*W*H) |
1000kg/h | 250+120 KW | 4-5m3/h | 7-8 | 65*6*3.5(L*W*H) |
2000kg/h | 350+120 KW | 6-8m3/h | 8-10 | 75*6*4.5(L*W*H) |
3000kg/h | 500 KW | 8-10m3/h | 10-12 | 90*6*5.5(L*W*H) |
