PP Plastic Lollipop Sticks Making Machine Brief introduction:
1. PP Plastic Lollipop Sticks Making Machine Application:
Equipped with corresponding die then can produce drink straw ,nozxle ,cotton slip ,lollipop stick ,toy tubeand other small industrial tube.
2. PP Plastic Lollipop Sticks Making Machine Main Parts:
1) This production line consists of main extruder ,die ,water ,tank haul-off and cutting device
2) Single -color ,two color and multi-color drink straw extruding lines are available.
3.PP Plastic Lollipop Sticks Making Machine Technical Parameters:
Model | Screw Dia(mm) | L/D | Main motor power(KW) | Product size range (mm) |
Single color | ø50 | 28:1 | 7.5 | 1-10mm |
ø55 | 28:1 | 11 | 2-15mm | |
ø65 | 28:1 | 15 | 3-20mm | |
Two color | ø55;ø25 | 28:1 | 7.5;1.5 | 3-15mm |
Three color | ø55;ø25*2 | 28:1 | 11;1.5 | 3-15mm |
Extruder | |
Main screw diameter | 50mm |
L:D: | 28:1 |
Power of main motor | 11KW |
Heating section | 5 |
Capacity | 800-1000 pieces/Minute |
Water cooling bath | |
Length | 6m |
Material | Stainless steel |
Hauling machine and cutting unit | |
Power of motor | 0.75KW |

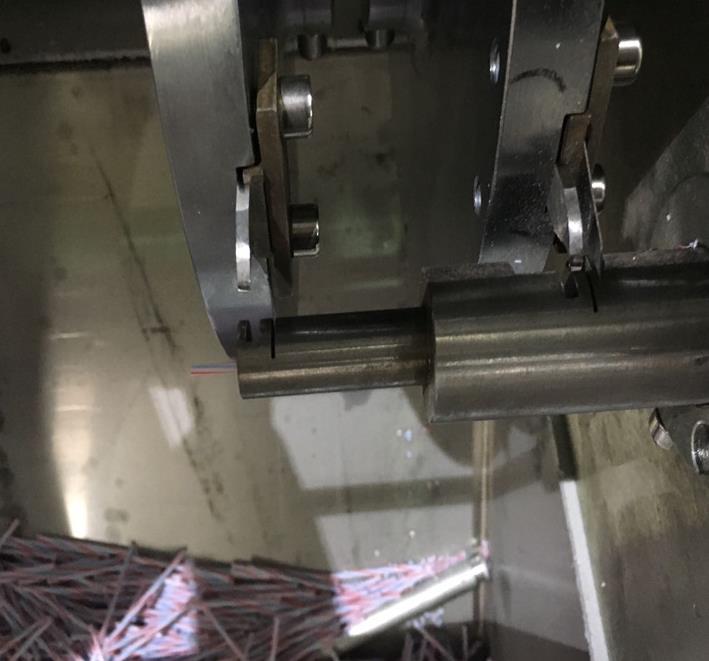

Cuttng with the special blades for lollipop stick | |
Material of working table | Stainless steel |
Air compressor | |
China |
