3D printer filament extruder machine 3D printer extrusion line PLA ABS is suitable for making ABS/PLA/PET/HIPS/PA/BVOH/PETG/PEEK granules into 3D printer filament.
The main products of the 45mm plastic filament extruding machine for 3d printing : 1.75mm ABS/ PLA 3D Filament & Typing Strips.

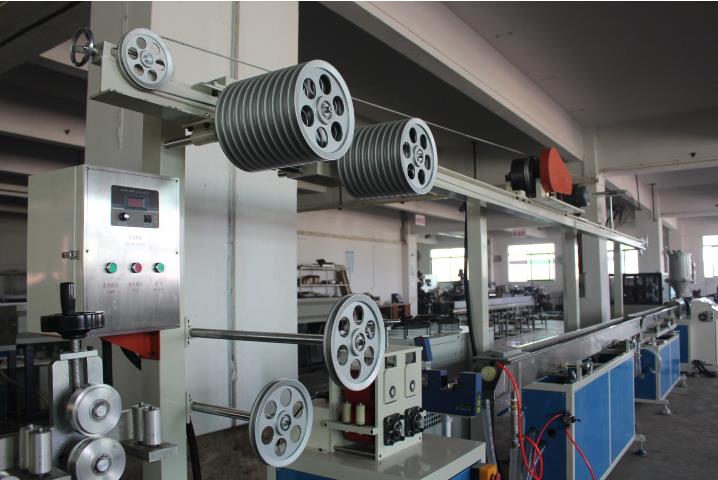

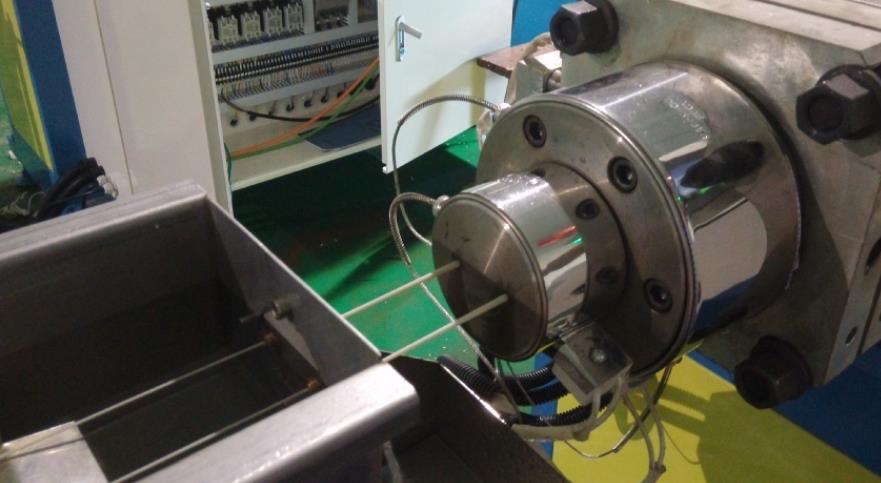

3D printer filament extrusion line consists of single screw extruder, immersion bath type water tank, haul-off, cutting machine etc,its control system consists of intelligent temperature control table,imported electrical components and converter. Main feature of this line: stable extrusion, good plasticizing effect, high degree of control precision, convenient operation etc.
2. 3D printing technology is the latest printing technology, to meet the demand for 3D printer, we specially designed ABS PLA Filament Extruder for 3D Printing . The main material are ABS and PLA.
3D Printer Filament Making Machine Parts List:
Number | Name | Remarks |
1 | PSD35B | |
2 | Cooling water tank | Stainless steel SUS304 |
3 | First drying device | Special water sleeve ring |
4 | Four wheel haul-off device | precision guide pillar |
5 | Double Auto Winder | Automatic metering |
6 | Laser controller | Tolerance +/-0.02mm |
3D Printer Filament Making Machine advantages:
1. Big capacity compared with other suppliers using the same model.
2. Lowest tolerance: +/- 0.02-0.03 mm.
3. Both 1.75 and 3.00mm filament diameter.
4. It can process multi-materials like PLA ABS PET PA HIPS .
5. Easy operation: Delta PLC full-auto controlling system.
6. Stable quality: we have not received any passive feedback from our customers.
7. Oversea service: installation, staff training and technical support.
