PVC Plastic Pulverizer Usages:

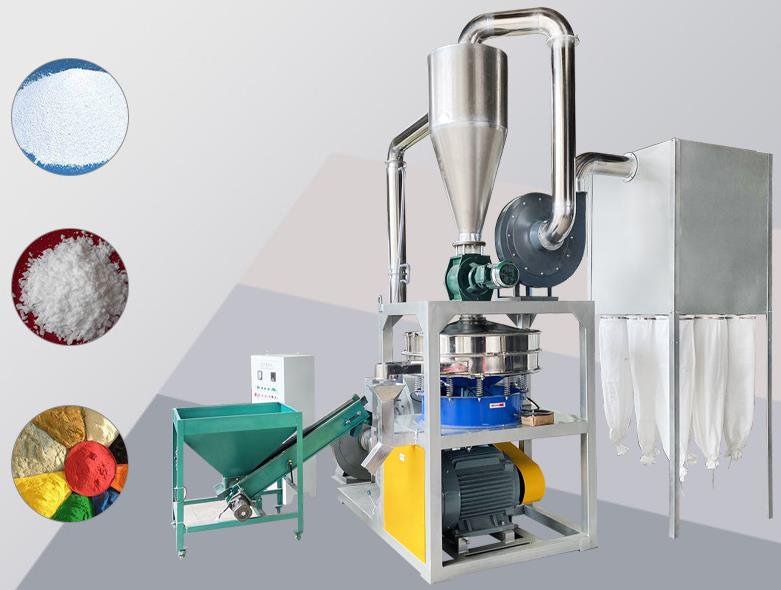

PVC Plastic Pulverizer can grind various soft and hard plastic materials into powder ranging 40 - 100 mesh, which is widely applicate to PVC, PE and modified PP, ABS, PS, PA, PC and other plastic polymers. It composes of five parts: automatic feeding, grinding system, wind conveying system, cyclone separation, and high-efficiency dust removal system. It is highly automatic machine.
The Milling Blade is made of high-quality imported steel, which is wear resistance and is suitable for continuous operation. The knife adjust system is quick, simple, and easy to operation. The main shaft bearing adopts the original Japanese NSK brand, the Disc material use SKD-11 material.
PVC Plastic Pulverizer Technical Data:
Model | SMW-500 | SMW-600 | SMW-800 |
Grinding Room Dia(mm) | Φ500 | Φ600 | Φ800 |
Speed(rpm) | 3800 | 3800 | 3800 |
Motor(kw) | 37 | 55 | 75 |
Fan(kw) | 2.2 | 4 | 5.5 |
Particle Size(micron) | 12-120 | 12-120 | 12-120 |
Output(kg/h) | 150-200 | 200-300 | 400-500 |
Vibration Sieve | 0.75 | 0.75 | 0.75 |
Deduster | 16 Bags | 16 Bags | 16 Bags |
Cooling System | Water Cool | Water Cool | Water Cool |
Weight(kg) | 1200 | 1550 | 1950 |
Size(mm) | 5900×1450×2900 | 5900×1450×2900 | 6500X1850X2900 |
