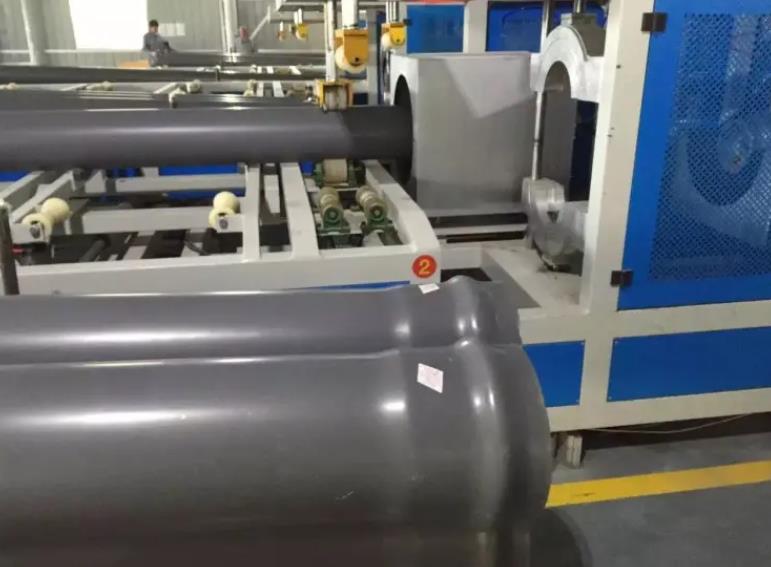

PVC Pipe Belling Machine features:
1. PVC pipe belling machine is suitable for the R type and U type plastic pipes.
2. The machine not only used in line with the pipe production line but also can be used as a single machine.
3. The characteristics of this machine are full automatic, stable and reliable, easy to operate.
PVC Pipe Belling Machine Technical Data:
Model | Pipe Diameter | Heating Method | Belling Method | Heating power | Dimension |
SGK-110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
SGK- 160- | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
SGK- 200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
SGK -250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
SGK -315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
SGK -450 | 200-450mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
SGK -500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
SGK -630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw | 8615x3125x2500mm |
